Horn X 2 PRO Engine with complete crossover (PAIR)
Horn X 2 PRO Engine with complete crossover (PAIR)
Couldn't load pickup availability
The Fastest Way to Upgrade Your Speaker - Now Even Better

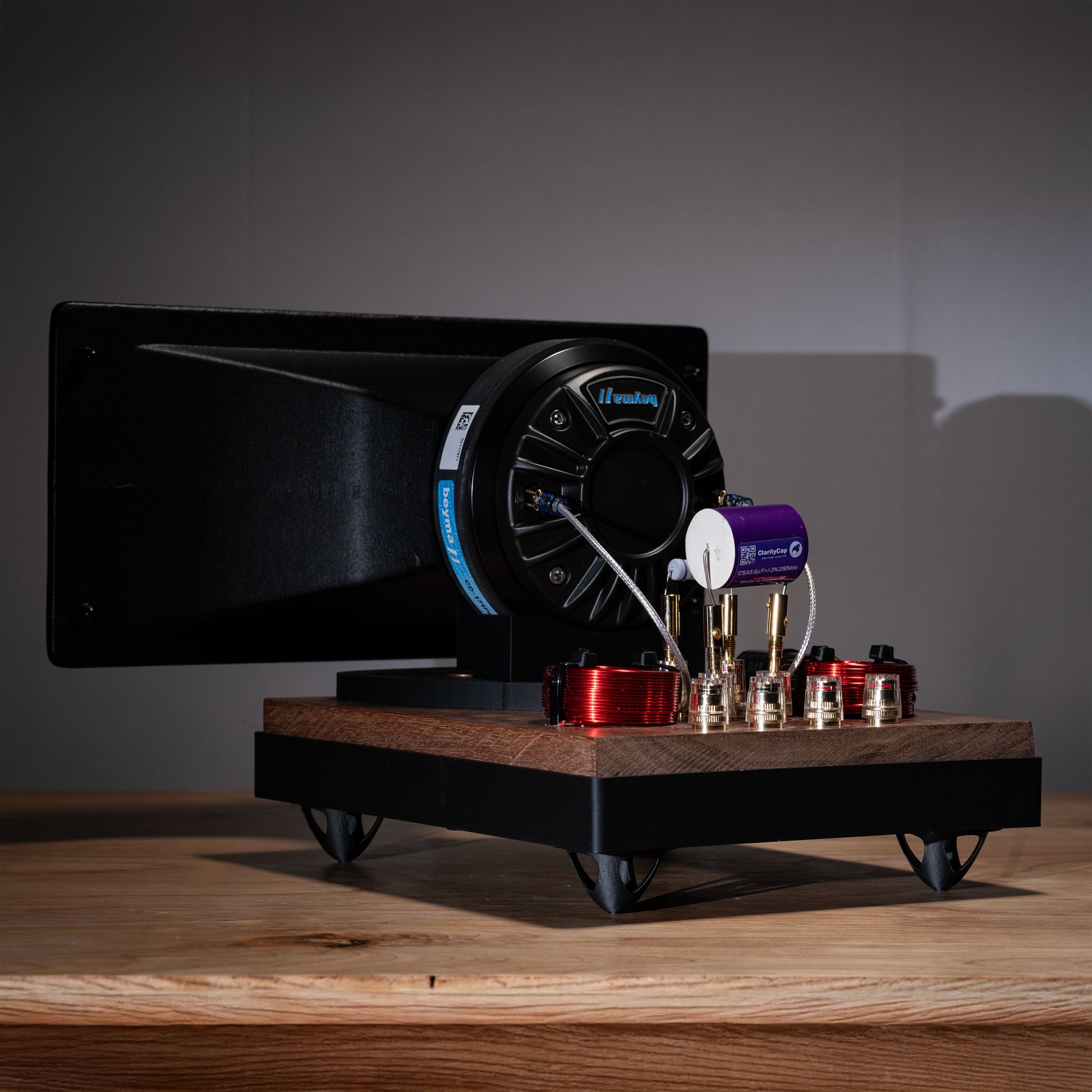

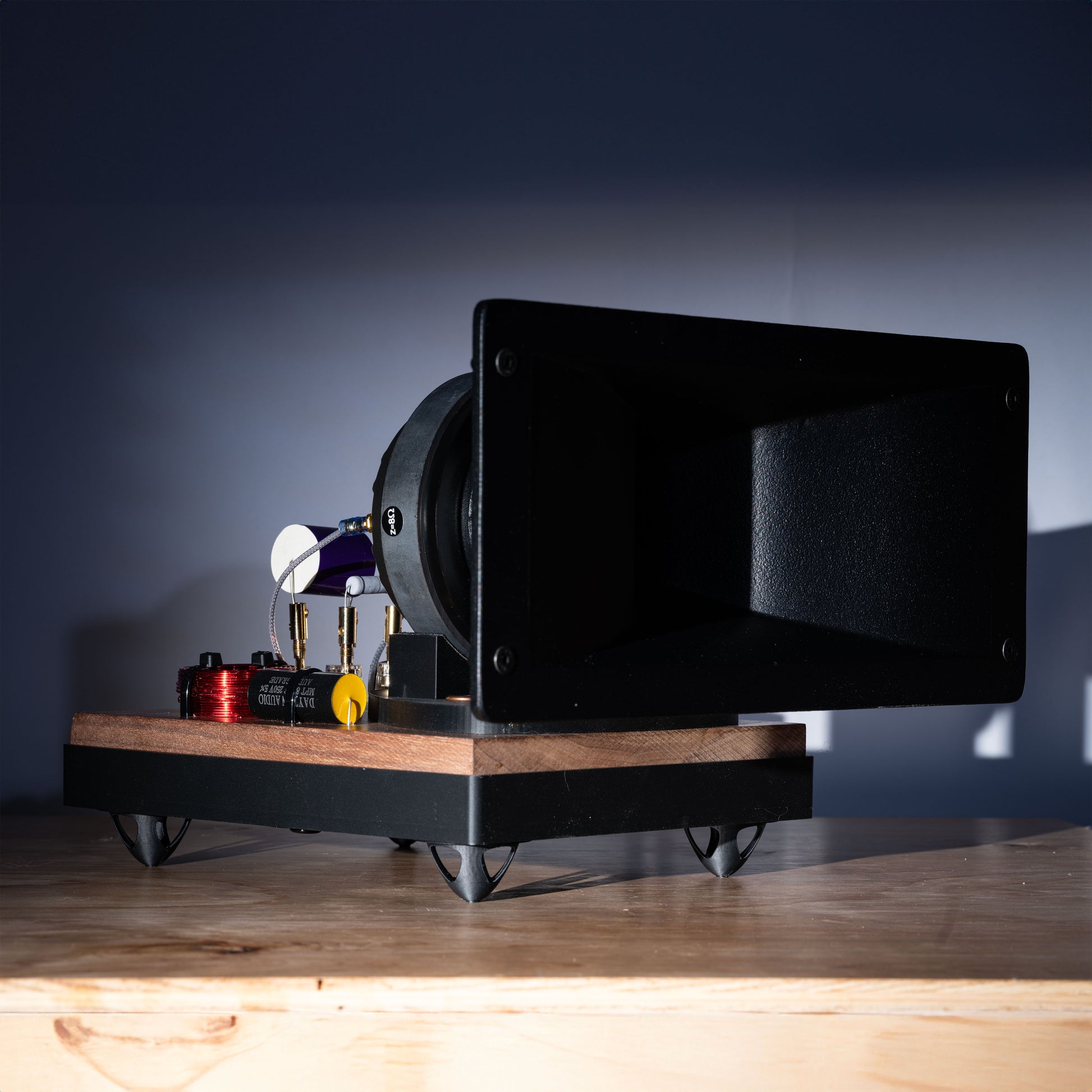

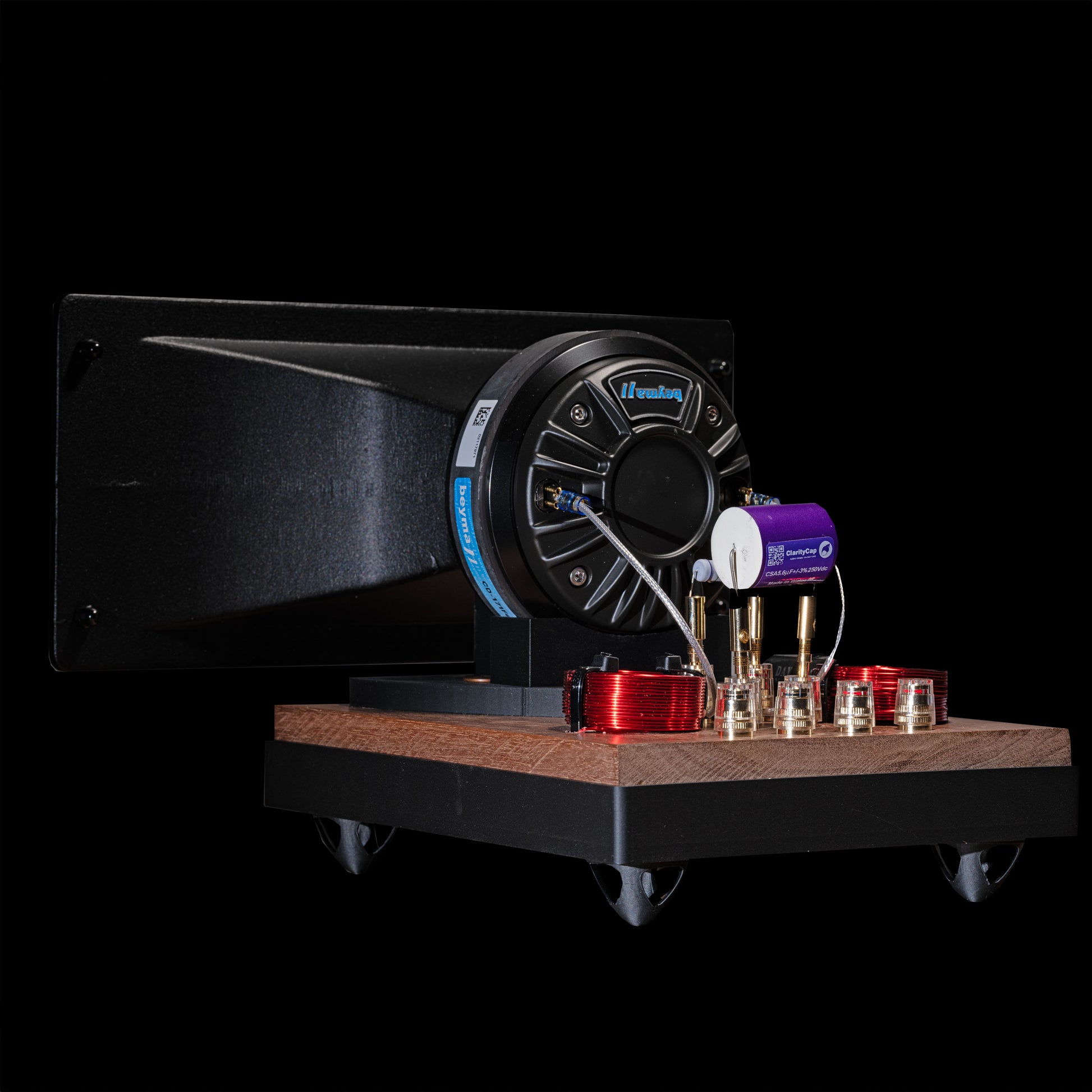

The Horn X2 PRO is the successor to the original Horn X2. It keeps the same concept — replacing your tweeter and crossover in one smart step — but refines it with a new symmetrical crossover and inert cradle mount. Just place it on top of your speaker and connect the wires.
- 🎯 Works with most speakers
- 🛠️ No tools or cabinet mods required
- 🔁 30-day return window
🧠 What’s the Horn X2 PRO?
A self-contained horn engine that takes over everything above ~1.65 kHz. It replaces your tweeter and your crossover in one complete module. Compared to the original Horn X2, the PRO adds:
- ✔ Symmetrical 2nd-order high-pass/low-pass at ~1650 Hz
- ✔ Adjustable horn volume and selectable voicing modes (Chebyshev-like, Butterworth, Bessel-like, or hybrid)

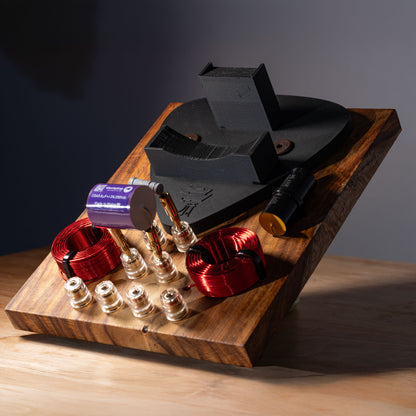

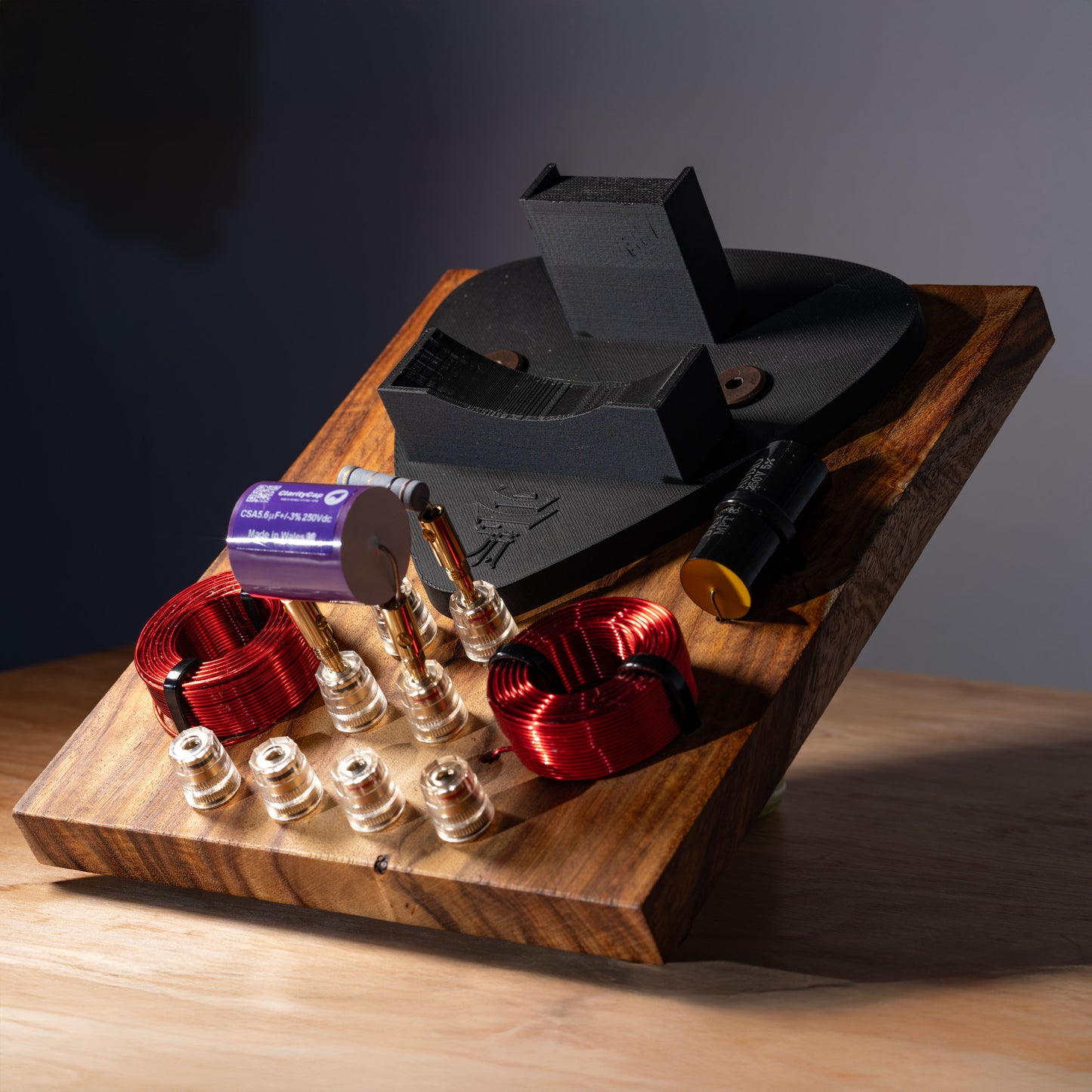

- ✔ Inert PLA cradle mount — no tools, no braces, no vibration
Plug-and-play. No guesswork. No soldering.
🚀 Why PRO?
The Horn X2 PRO is not just an iteration — it’s a refinement. By lowering the horn’s crossover point into its optimal range and aligning phase with the woofer, integration is smoother and more natural. The new cradle mount improves damping and eliminates hardware clutter. In every way, it outperforms the original Horn X2 — at the same price.
🔧 How It Works
- Place the Horn X2 PRO on top of your speaker
- Connect your amp to the center terminals on the back
- Connect the outer terminals to your woofer
- You’re done — the Horn X2 PRO takes over above ~1650 Hz
No cabinet mods. No crossover math. Just connect and play. We pre-tune the system for you before shipping — and we’re here to help fine-tune if needed.
What’s Included

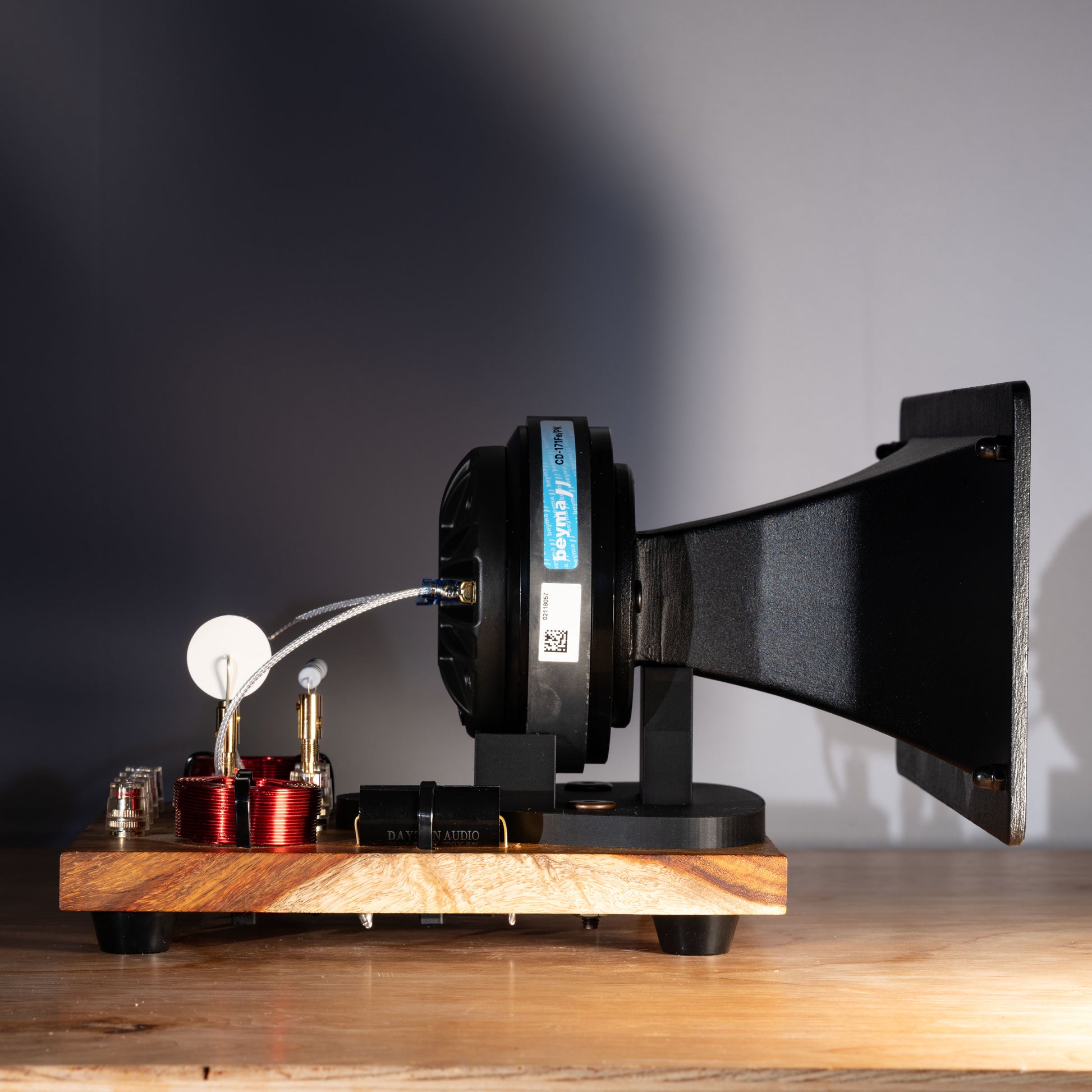

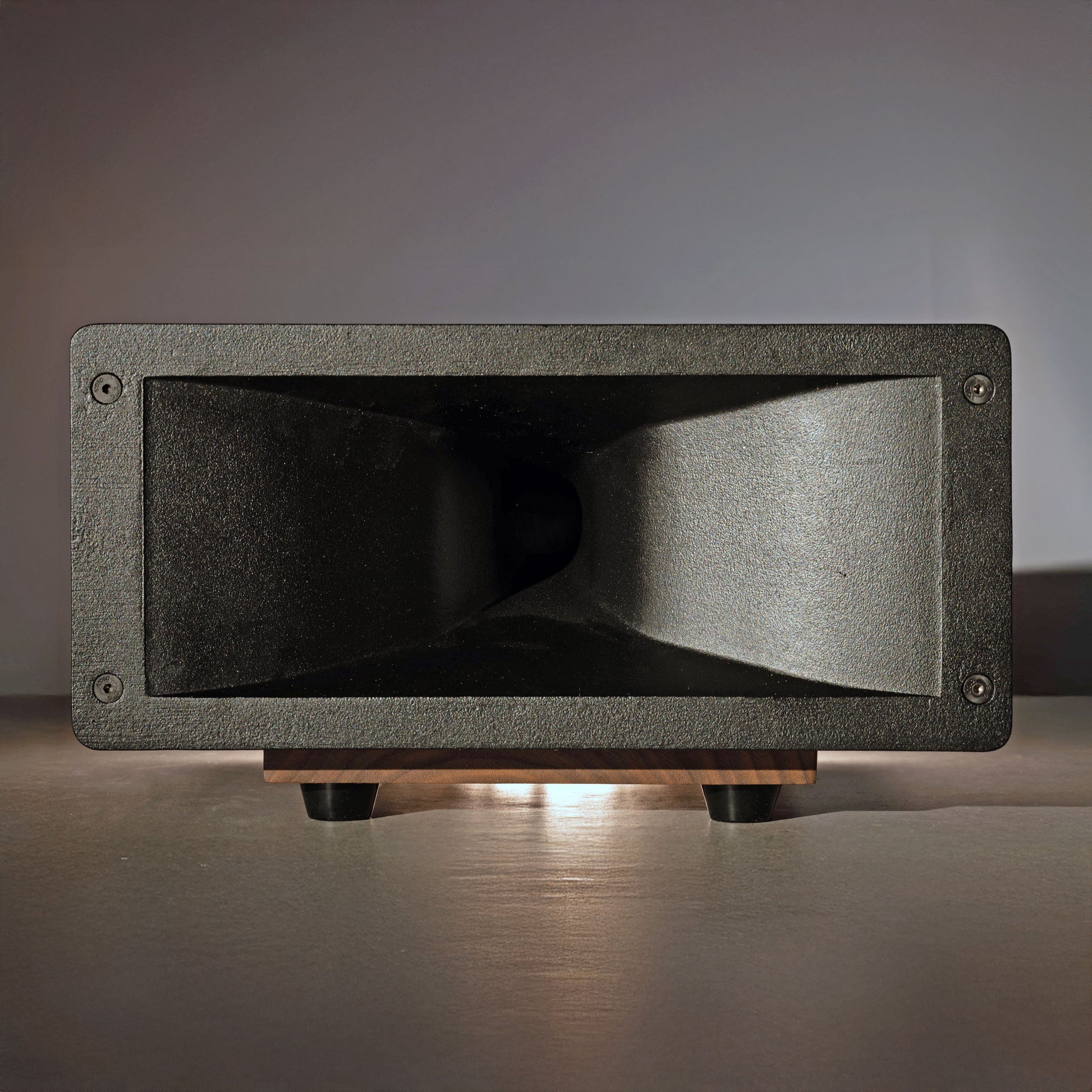

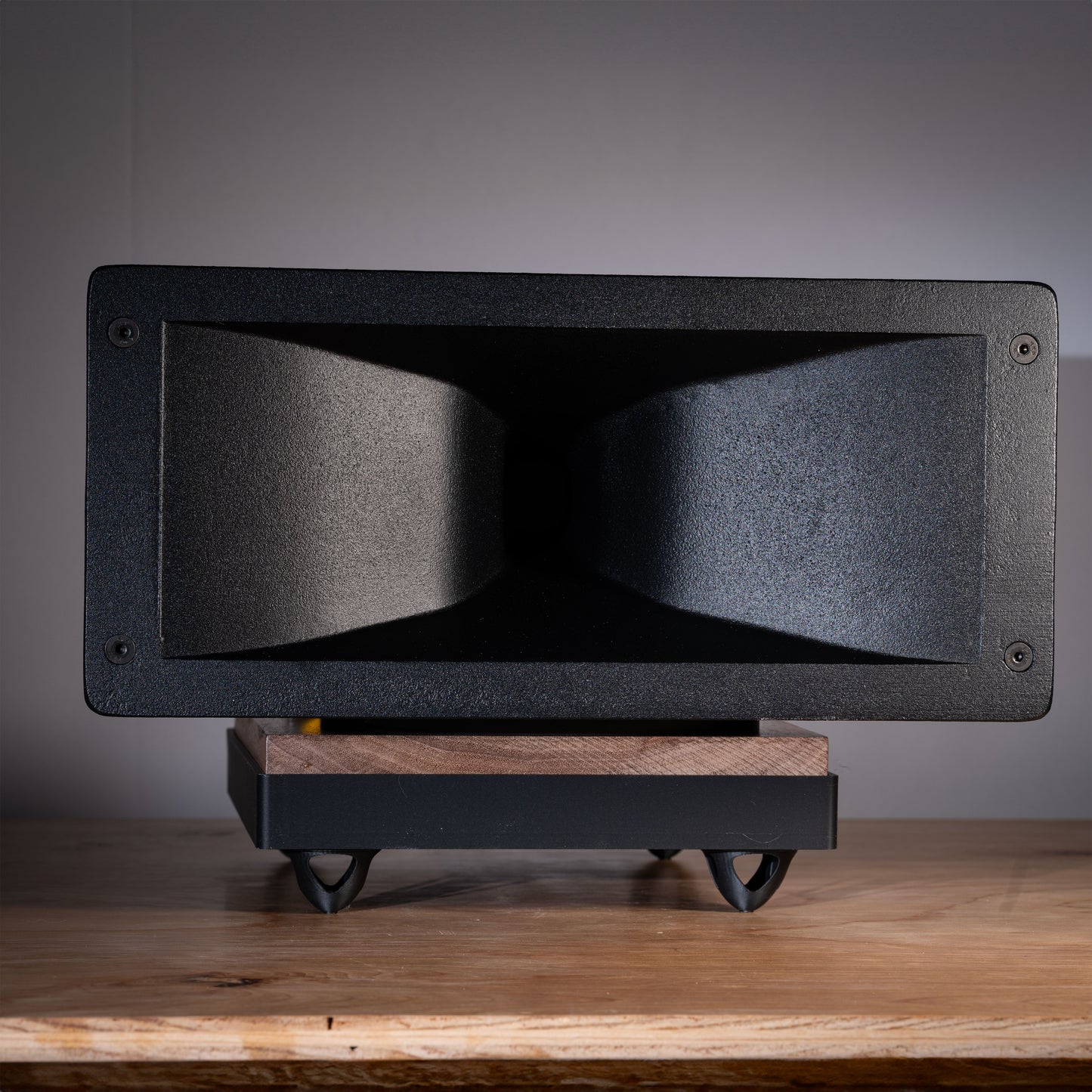

- ✔ Precision aluminum horn (B&C ME45)
- ✔ Beyma CD171 FE/PK compression driver with ketone polymer diaphragm
- ✔ Hand-oiled 3/4" American walnut plinth (other woods available)
- ✔ PLA guitar-pick cradle mount (gyroid-damped, inert)

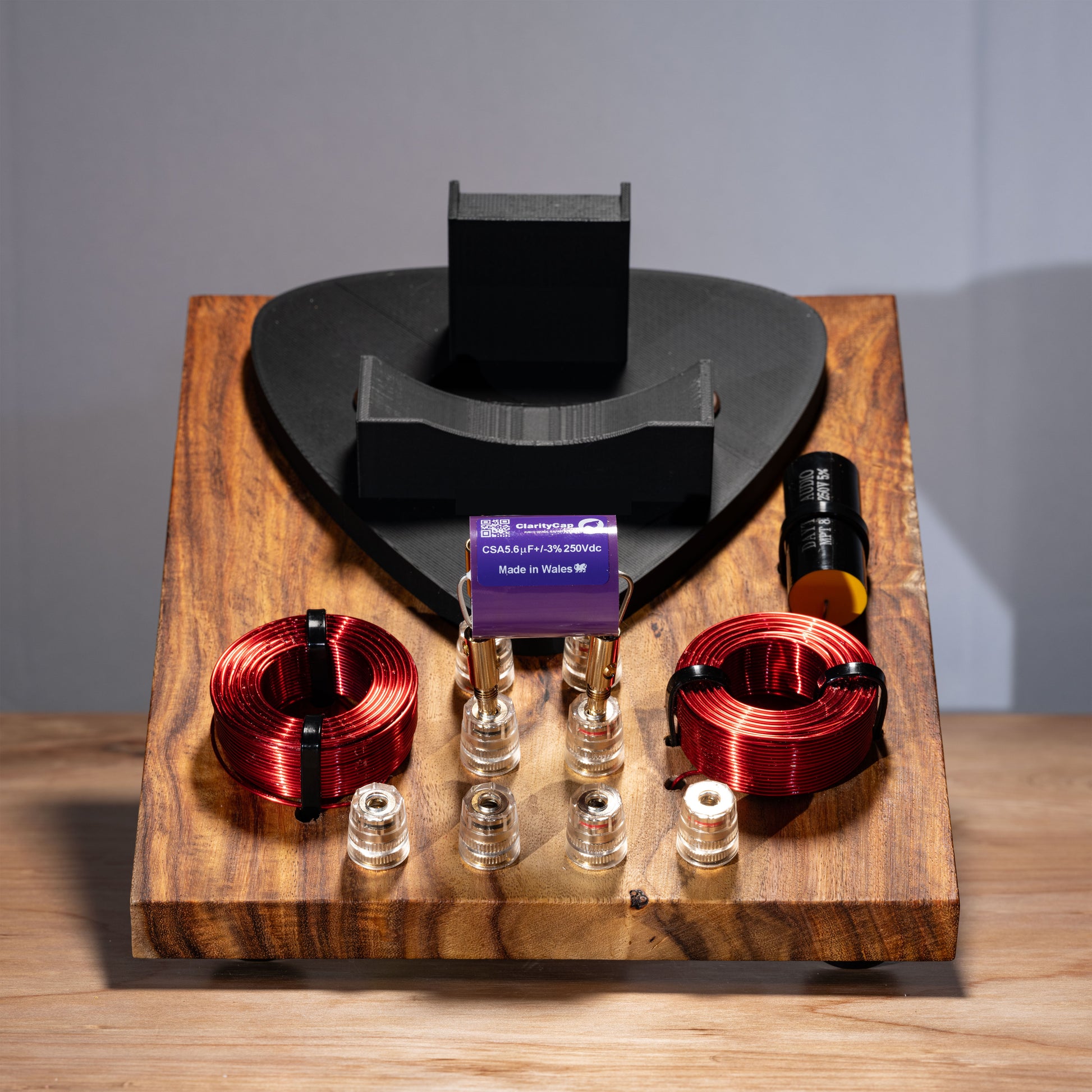

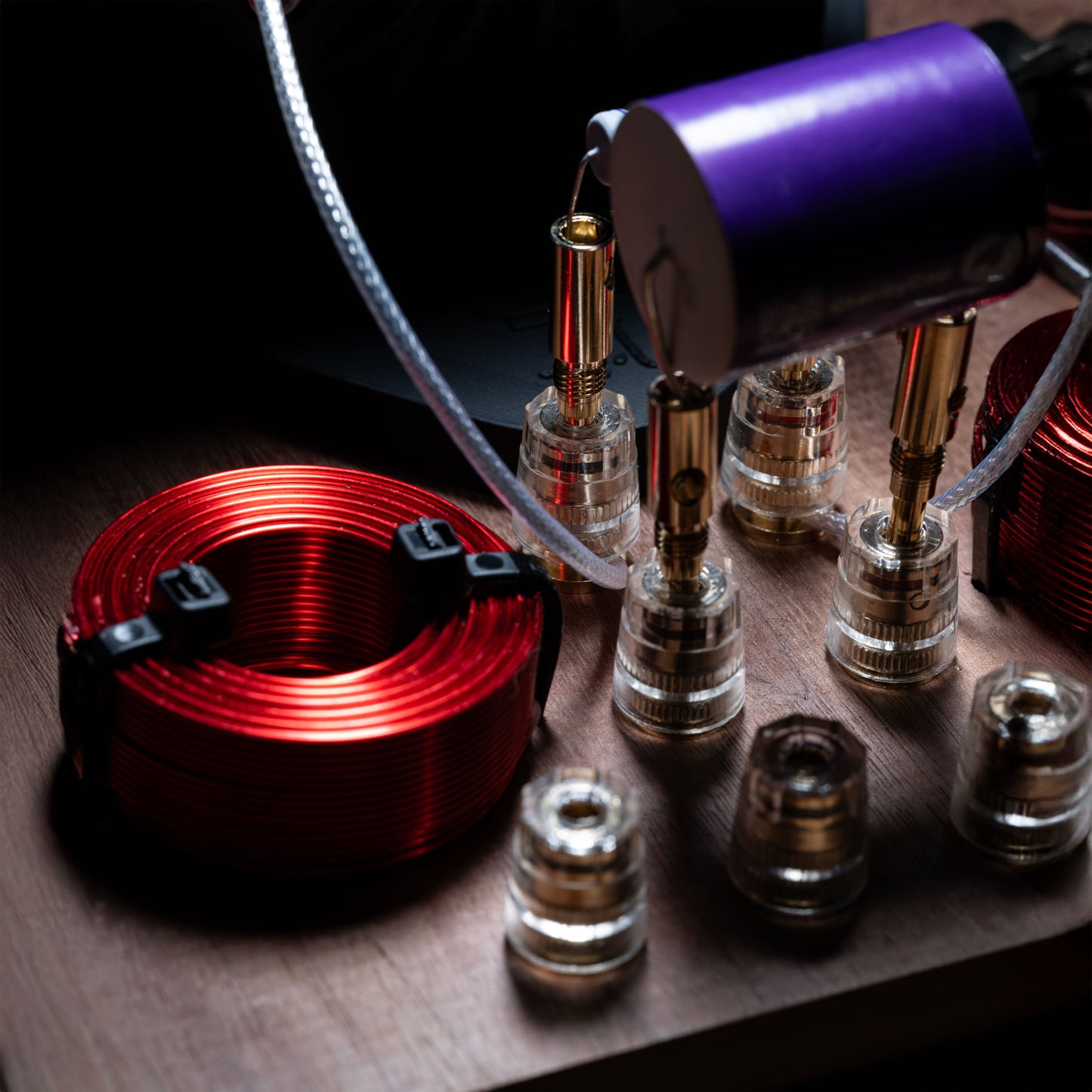

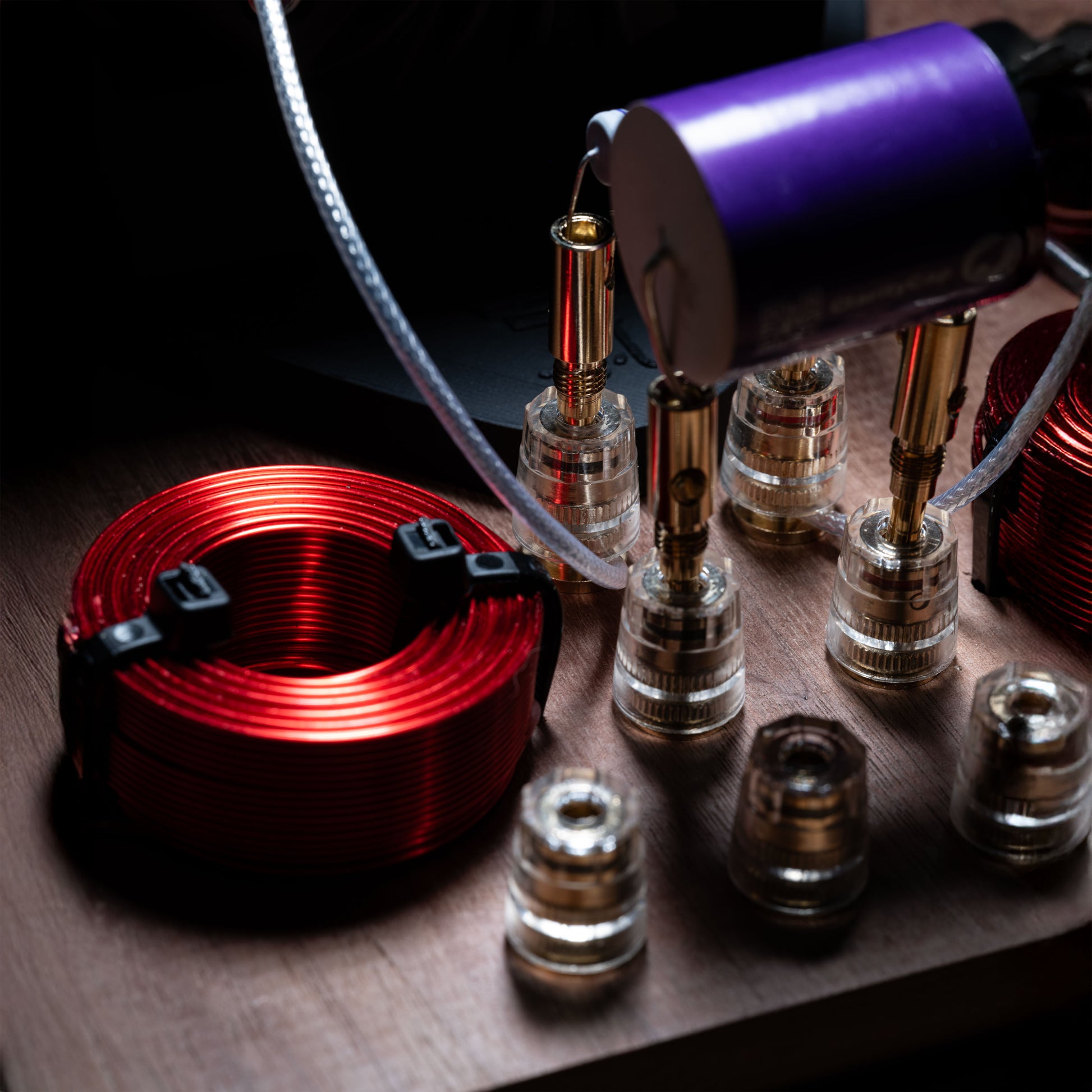

- ✔ Internal high-pass and low-pass crossover (Clarity, Mundorf, Jantzen, Solen)
- ✔ Infinitely variable L-pad (108 dB down to 85 dB)
- ✔ Selectable voicing modes: Chebyshev-like, Butterworth, Bessel-like, or any hybrid via plug-in cap
- ✔ Tuned and tested before shipping
- For New Horn X2 PRO purchases, please email us your preferred wood species (Walnut, Oak, Black Limba, Canary, Rosewood, or Brazilian Hickory) after checkout.”
No external crossover needed. No guesswork. Just high-end performance — instantly.
📊 Specs
| Sensitivity | 108.5 dB @ 1W/1m |
| Frequency Response | 1.3kHz–20kHz ±3dB (mode-dependent) |
| Attenuation Range | 85–108 dB (infinitely adjustable) |
| Max SPL | ~119.7 dB |
| Power Handling | 60W RMS |
| Crossover | 2nd-order LP/HP @ ~1650 Hz Selectable HP voicing: Chebyshev-like (~2100 Hz), Butterworth (~1650 Hz), Bessel-like (~1350 Hz) — and virtually any hybrid HP voicing you desire by simply changing the plug-in capacitor atop the plinth |
| Dimensions | 12" W × 6.5" H × 11" D |
| Weight | 8.15 lbs |

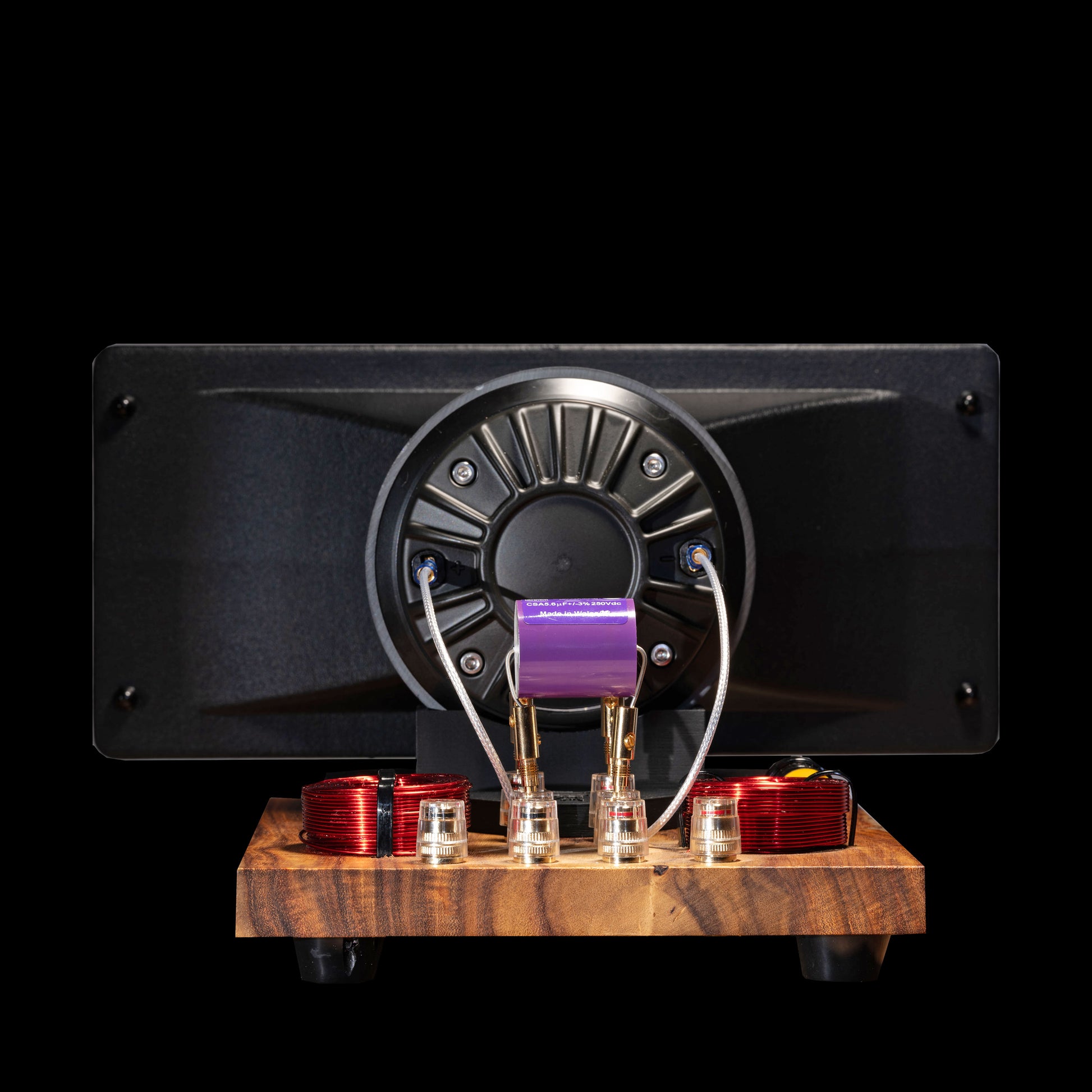

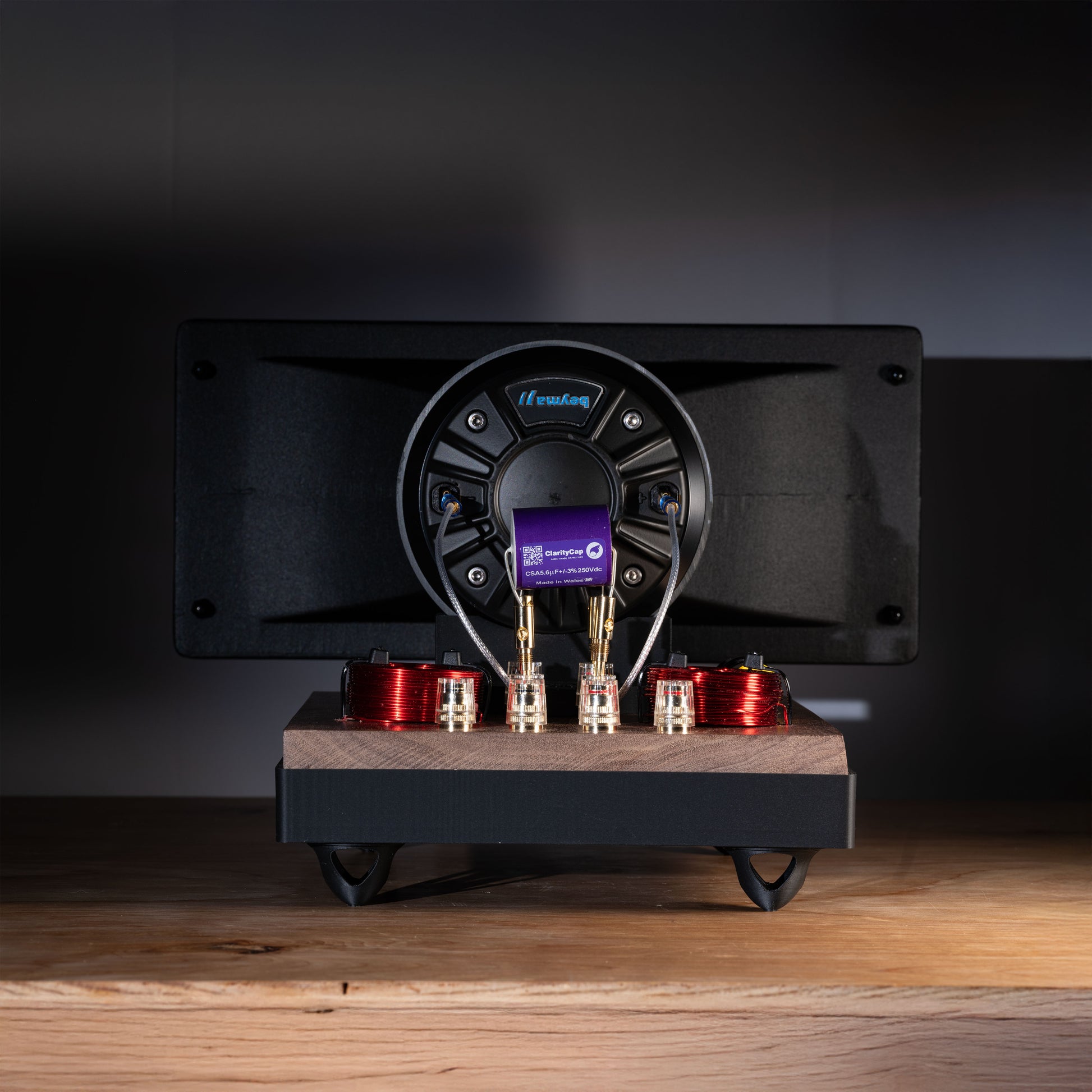

| Connections | Center terminals = from amp Outer terminals = to woofer |
♻ Upgrade Your Horn 2 PLUS 2 or Horn X2
Already own a Horn 2 PLUS 2 or Horn X2? You don’t need to buy new. Choose the Upgrade Service variant ($349) when ordering. You’ll send us your current unit, and we’ll retrofit it to full PRO spec — including the symmetrical 2nd-order crossover and cradle horn mount. Turnaround time is about two weeks.
Note: Upgrade price includes $300 service + $49 flat return shipping (domestic). International customers, please contact us for shipping rates.
💬 Try It First — Risk-Free
Buying audio gear without hearing it first can feel risky — especially something this unique. That’s why the Horn X2 PRO comes with a 30-day return window.
Try it at home, in your system, with your music. If it’s not right for you, just send it back in original condition. See full return details.
❓ Frequently Asked Questions
1. Will the Horn X2 PRO work with my speakers?
Yes. It works with nearly any speaker that has a woofer and tweeter — including 2-way, 3-way, even 5-way designs. It bypasses your tweeter and takes over above ~1650 Hz with its internal crossover. No cabinet mods required.
2. Do I need to modify or remove my existing tweeter?
No. The Horn X2 PRO overrides your existing tweeter electronically. Place it on top, connect the wires, and the built-in crossover does the rest.
3. Does it replace my speaker’s crossover?
Yes — it replaces the high-frequency section. Horn X2 PRO includes a full high-pass for the horn and a low-pass to block treble from reaching your woofer. The swap is clean and external.
4. What kind of amp do I need?
Any stereo amp will work. With 108 dB sensitivity, Horn X2 PRO is a dream match for tube amps, Class A designs, low-watt amps, and solid-state gear alike.
5. Can I adjust the horn volume or crossover point?
Yes. The built-in L-pad adjusts horn level, and the plug-in capacitor system lets you select between Chebyshev-like (~2100 Hz), Butterworth (~1650 Hz), Bessel-like (~1350 Hz), or virtually any hybrid HP voicing you desire. We configure it for you at shipping, but you can experiment later if desired.
6. Can I build a full speaker with this?
Absolutely. Pair Horn X2 PRO with a quality woofer and cabinet, and you’ve got a complete high-end 2-way system without designing a crossover from scratch.
Let the Horn X2 PRO Finish the Job
You’ve got the woofer. Maybe even a cabinet. The Horn X2 PRO does the rest — with better integration, damping, and performance than the original Horn X2.
Because building a great speaker should be fun — and sound amazing.
